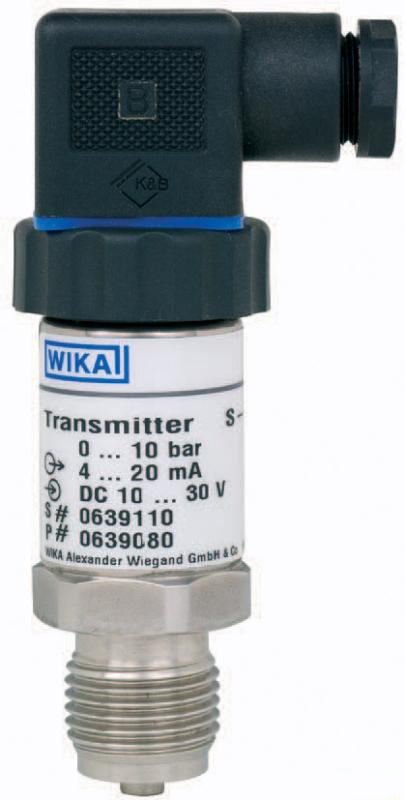

Model S-11 with flush diaphragm
Specifications according to data sheet: PE 81.01 Power supply: DC 10 (14) ... 30 V
Case: stainless steel Signal output: 4 ... 20 mA,2wire Pressure range: 0 ... 0.1 bar
Process connection: G 1 B, flush diaphragm with O-ring
Material of wetted parts: stainless steel and O-ring from EPDM
Accuracy: 0.5% of span
Electrical connection: 4-pin L-plug DIN EN 175301-803, IP65
Temperature range of medium: -30 ... +100 °C (-22 ... +212 °F)
Power supply: 10...30 V DC
pin assignment el. connection: UB=1, 0V=2
